highlights
- Automatic centring and clamping unit
- Outer scanning of the sash (rebate dimension)
- Pneumatic table inclination from 0° – 15°
- Profile-protecting sliding or felt strips
- Quick and accurate positioning of the screwing unit
- Different screwing heights can be adjusted
- Automatic screw feed
- Electronic table control
- Two heavy-duty guide rails
for version 2F
Options
- Handle drilling unit
- Lock case milling unit
- Glazing bead measuring system
with wireless / barcode printer - Barcode laser scanner for screwing unit
- Stainless steel support
- Punch preparation or punch
- Corner hinge drilling unit optionally with
2-spindle drill head - Assembly system for central and
constant handle seat - Mounting shelf with 33 or 41 compartments
- Wood and aluminum version

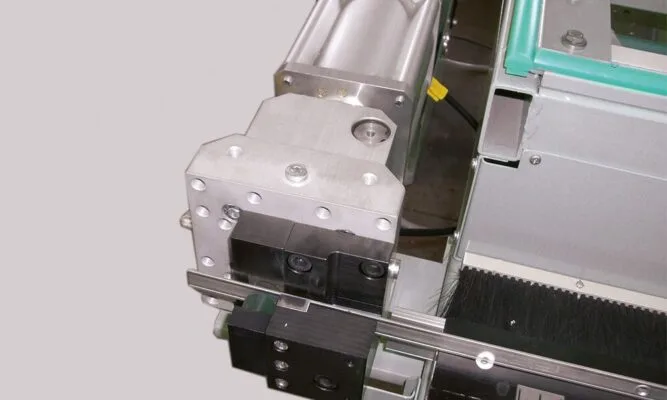

BS-320 Metal mount punch
with open cutting tool for straight cutting; different punches, e.g. hole punch or special punches, can also be implemented.

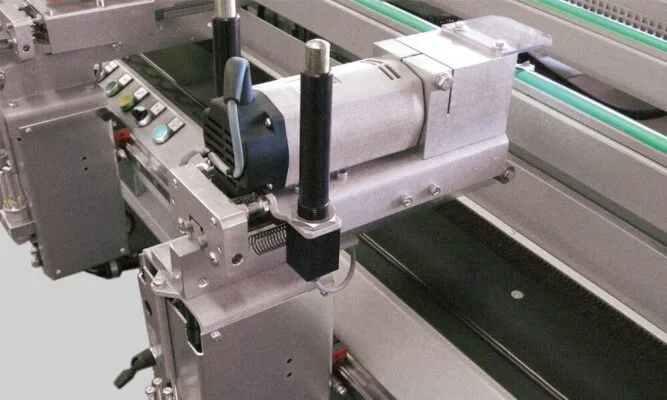

FE-320 Milling unit
mobile, incl. pneumatic height-adjustment with four-way turret stop at the top and at the bottom, manual depth adjustment, two-hand operation and stop for lock case milling

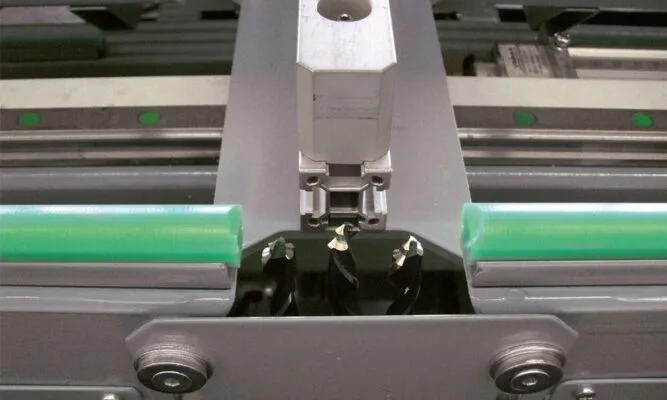

GOB-320 Handle drilling unit
stationary installation with hydro-pneumatic drill feed clamping unit and three-spindle drill head
